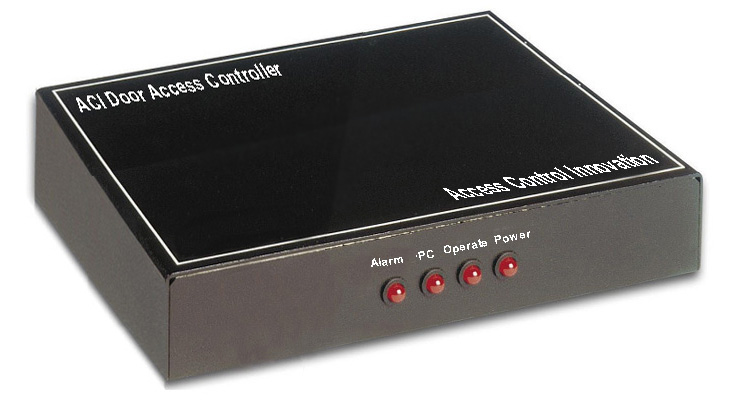

ACI116 Master Controller

1. Support RS232 and RS485 PC communication or Modem connection

2. TCP/IP network communication (Optional internal card)

3. Concentrates up to 16 Door Slave Controller with 32 readers

4. Stores up to 20000 cardholder entries in its memory

5. Transactions event up to 17000 records, FIFO

6. Backup Battery for up to 30 hours operation

7. Fire Alarm input for emergency door open

8. Direct update firmware from computer via RS232, RS485, modem or network (hardware version 4 or above)

9. Battery in-use alert

10. Retains all data for up to 5 years in memory (without power)

11. Provides real time clock (RTC) services to all terminals

12. On-line entry/exit logging and reporting

13. Independent operation; parameters are set via ACI Access Control Manager Software

14. Support Mifare Readers, Proximity Reader or any wiegand type reader

15. Support 32 time zones

16. Support 60 holidays

17. Support 64 Access Control Group Level

18. Support Winter Time / Summer Time

19. Support Door Release Button Input, Door Relay Output, Door Sensor Input, Door Sensor Output, Fire Alert Input

20. Support Reader interface such as Wiegand, RS485, Magnetic, Barcode

21. Power : 110 - 260VAC or  12VDC, 100mA

22. Dimension : 205 x 155 x 38 mm

¡@

For 1 or 2 doors

ACI116 + ACI155 is the most cost effective solution now a day for small installation

¡@

For large installation

ACI116 + (ACI152 or ACI153)  x  No. of doors will be a perfect system nowadays for fast growing enterprise.

ACI155 Internal 2 door relay module

1. direct plug into Master Controller for 2 doors operation

2. 2 release button input / 2 door relay output

3. Power from Master Controller

4. Support 2 wiegand readers eg. HID, Indala, etc...

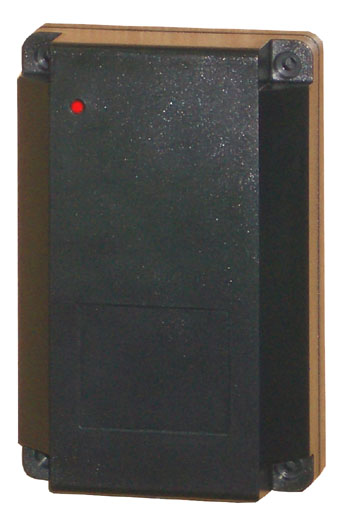

ACI152 Door Slave Controller

1. Support High Speed communication between Master Controller in 19200bps

2. RS485 PC communication (only 2 wires from Master Controller)

3. Maximum length of 1200 meter away from Master Control Unit

4. Install over ceiling for each door

5. Up to 2 dry contact inputs and 2 relays output (1 door release button, 1 door relay output, 1 sensor input, 1 sensor alarm relay output)

6. Support Wiegand 26 / 34 bit reader (with HID keypad) as well as ACI RS485 reader

7. 2 colors LED indicator for connection success or failure

8. Relay : up to 30VDC, 2A

9. Power : 12VDC, 150mA

10. Dimension : 125 x 80 x 33 mm

¡@

¡@

ACI153 Door Slave Controller (Lite Version)

1. Support High Speed communication between Master Controller in 19200bps

2. RS485 PC communication (only 2 wires from Master Controller)

3. Maximum length of 1200 meter away from Master Control Unit

4. 1 release button and 1 relay output for door, no sensor IO, only support ACI RS485 reader

5. Install over ceiling for each door

6. 2 colors LED indicator for connection success or failure

7. Power : 12VDC, 120mA

8. Dimension : 83 x 58 x 34 mm (not include mounting pad)

9. Dimension : 109 x 58 x 34 mm (include mounting pad)

¡@

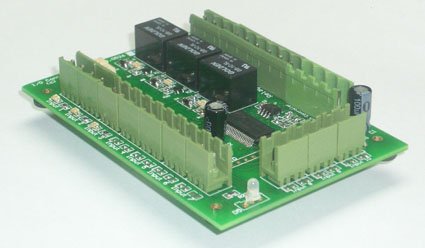

ACI141  Digital Input / Output Slave Controller

1. Support High Speed communication between Master Controller in 19200bps

2. RS485 PC communication (only 2 wires from Master Controller)

3. Maximum length of 1200 meter away from Master Control Unit

4. 10 dry contact  inputs and 3 dry contact outputs

5. 2 colors LED indicator for connection success or failure

6. Power : 12VDC, 120mA

7. Same box size as ACI152 Door Slave Controller

8. Dimension : 125 x 80 x 33 mm

¡@

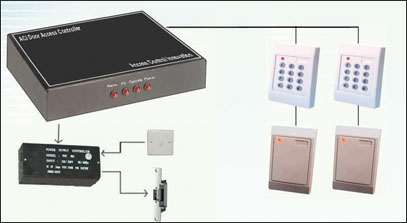

Two Doors System (Controller built-in door output relay)

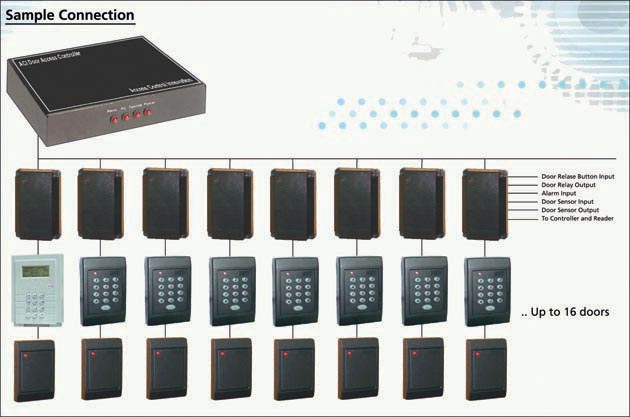

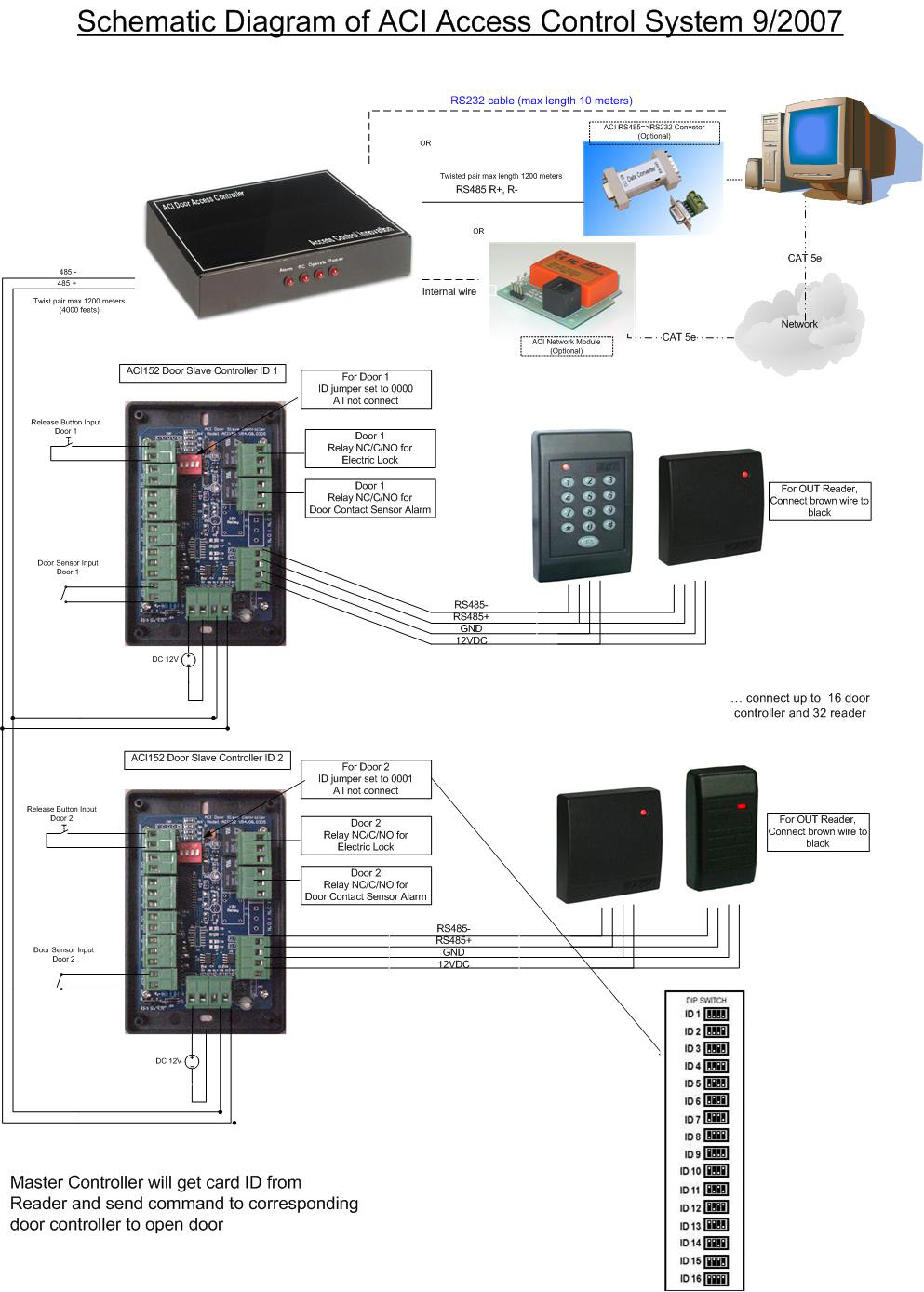

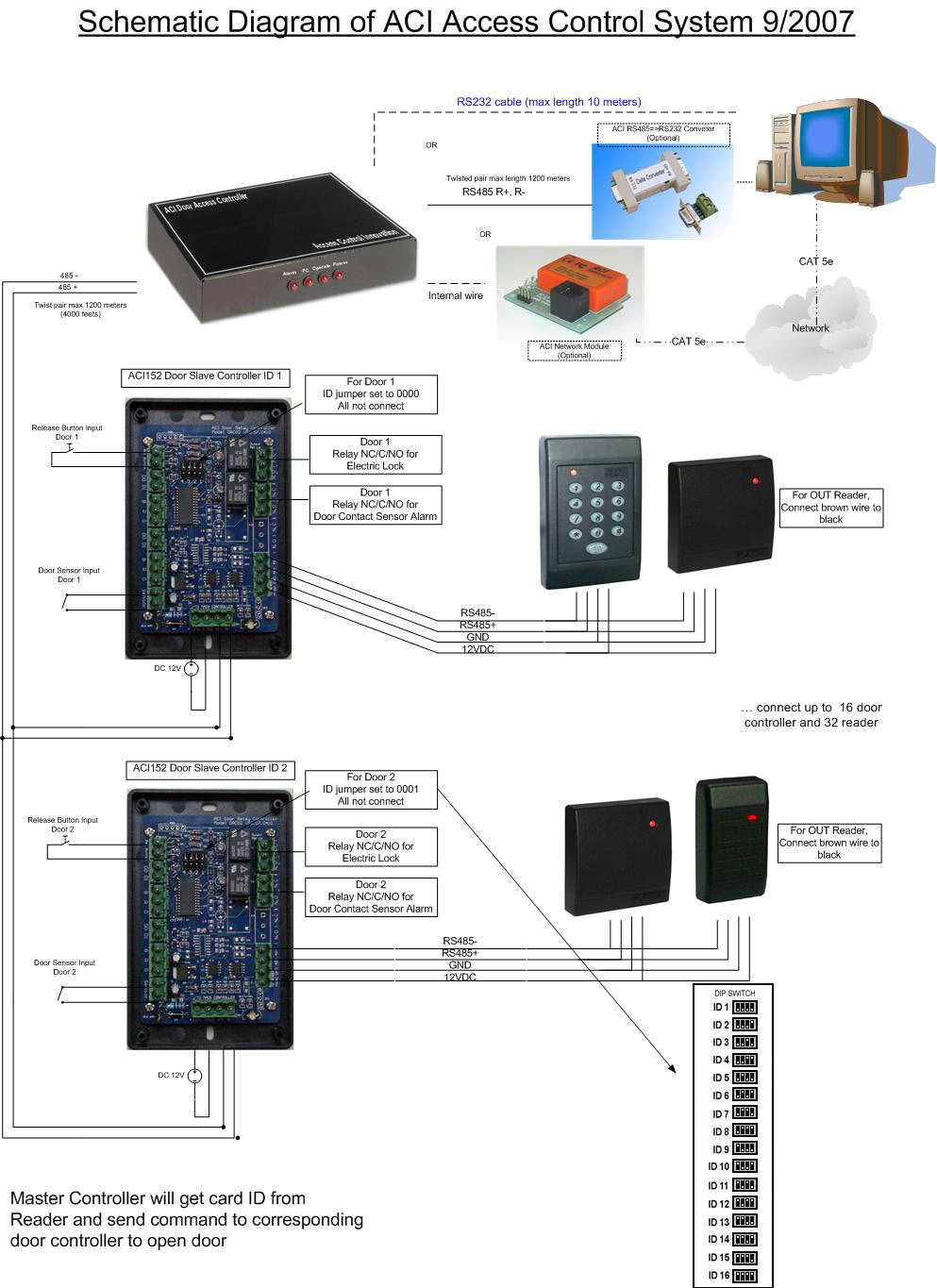

Sixteen Doors System (Master Controller work with Door Slave Controller to provide total security solution with door magnetic sensor input and alarm output)
