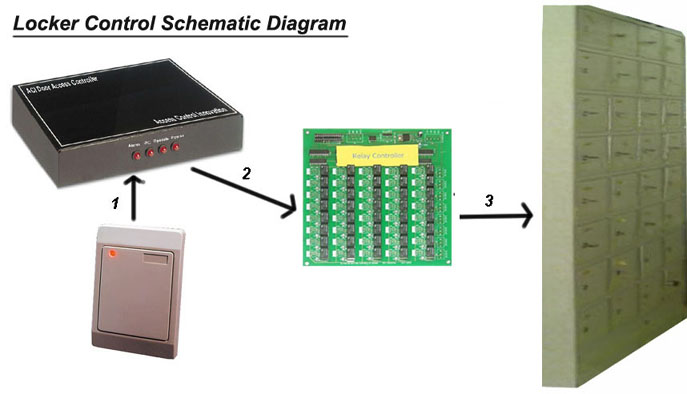

Logic Flow

1. Reader read the smart card and send to Controller

2. Controller verify the smart card if it is in correct location and time then send command to Locker Relay Board

3. Relay Board activate that card holder's locker

¡@

Features
1. Support RS232 and RS485 PC communication or Modem Dial connection

2. One controller support 40 lockers

3. One COM port support 31 controllers

4. Optional TCP/IP network communication module (no limited in controllers)

5. Stores up to 20000 cardholder entries in its memory

6. Transactions event up to 17000 records, FIFO

7. Backup Battery for up to 10 hours operation

8. Battery in-use alert

9. Retains all data for up to 5 years in memory (without power)

10. Provides real time clock (RTC) services to all terminals

11. On-line entry/exit logging and reporting

12. Independent operation; parameters are set via ACI Access Control Manager Software

13. Support Mifare Readers, Proximity Reader or any wiegand type reader

14. Support 32 time zones

15. Support 60 holidays

16. Support 64 Access Control Group Level

17. Support Reader interface such as Wiegand, RS485, Magnetic, Barcode

18. Power : 220VAC

19. Controller Dimension : 205 x 155 x 38 mm

20. Locker Relay Board Dimension : 200 x 215 x 20mm

21. Reader Dimension : 114 x 74 x 17 mm

¡@
